Product Introduction Copy (Marketing Copy)
Gentier Mini Series:Start precise molecular diagnosis anytime and anywhere
Tianlong Gentier Mini Series is a portable real-time PCR system specifically designed for mobile laboratories， on-site testing， and small-sized laboratories with limited space. It is compact in size and highly performant， completely solving the problems of fragmented experimental space and difficult on-site testing. It is an ideal companion for animal disease prevention and control， food safety testing， and scientific research experiments.

Core Advantages (Why Gentier Mini)

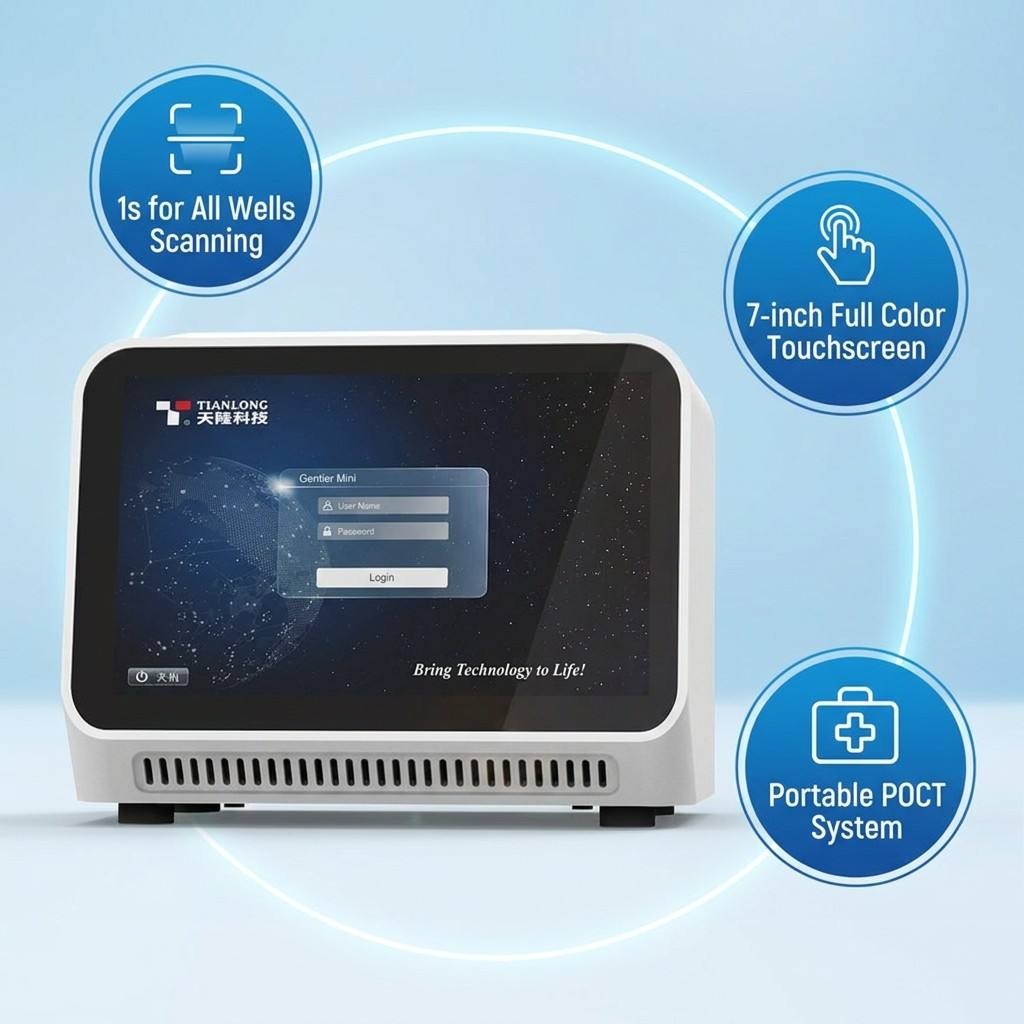

Compact and portable, no calibration required. The entire machine weighs only 3.2kg and its size is approximately half of an A4 sheet. The unique structural design ensures that no fluorescence calibration is needed after moving, truly achieving "pick up and go, start measuring immediately".
Ultra-fast scanning, efficiency leap. Supports 16-channel samples, and the full-channel fluorescence scanning only takes 1 second. Equipped with a heating rate of up to 5.0℃/s, significantly shortening the total experimental duration.
Multi-mode intelligent control
Mode 1: Built-in 7-inch touch screen, can operate independently without a computer.
Mode 2: Fine operation through computer software.
Mode 3: Supports remote control via tablet.
Powerful software analysis capabilities. Supports various functions such as qualitative analysis, absolute quantitative analysis, relative quantitative analysis, SNP analysis, and melting curve analysis. Results can be directly printed using a thermal printer.

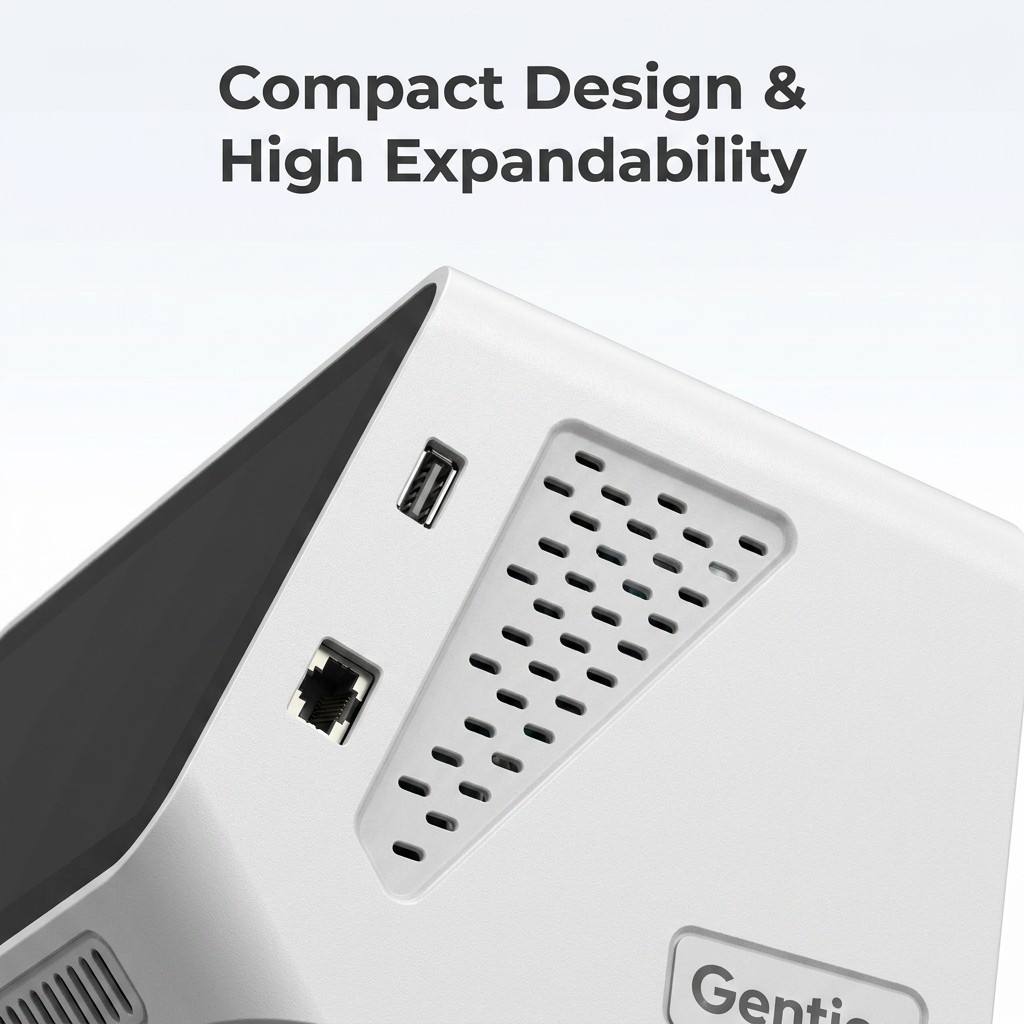

Real-time online, seamless connection. Supports multiple communication methods such as WiFi, USB, and network port to ensure that experimental data is always online and easily connected to the laboratory information system.

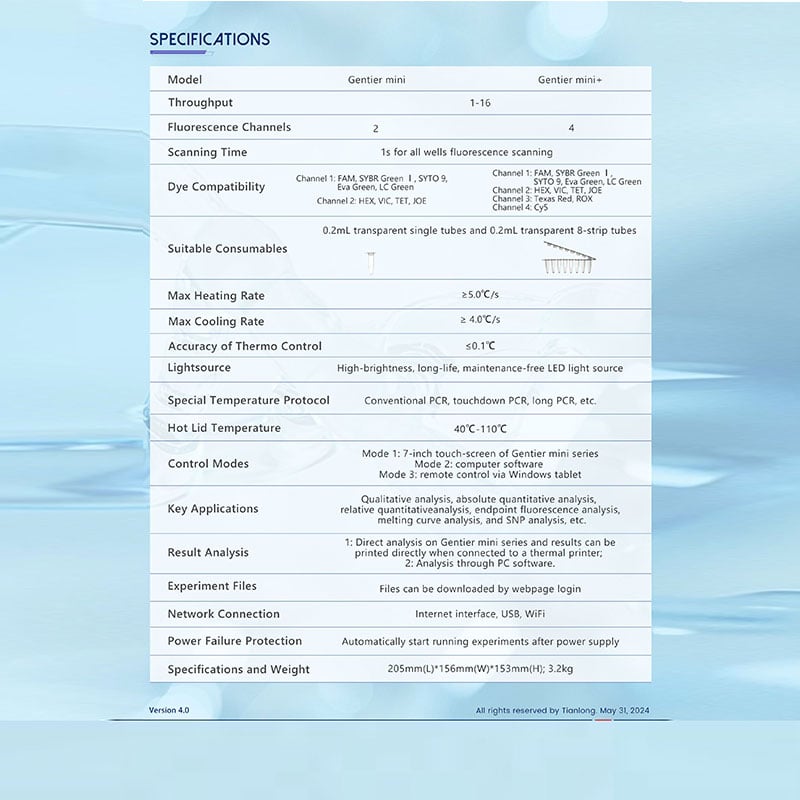

Product Specifications

Product Summary

The Tianlong Gentier Mini Portable Real-Time PCR System is an advanced 16 Wells qPCR Machine designed by experts to revolutionize point-of-care molecular diagnostics. Built for field testing, mobile laboratories, and space-constrained settings, this compact Portable Real-Time PCR System weighs only 3.2 kg while delivering precise quantitative PCR results. Featuring a high heating rate of 5.0°C/s, ultra-fast 1-second full-channel fluorescence scanning, and multi-device control options, the Tianlong Gentier Mini Portable Real-Time PCR System ensures rapid, reliable DNA and RNA detection anywhere. It is an ideal Mobile Lab qPCR Device distributed by Beijing Jiachuang Jiuhe Global Trade Co., Ltd.

Detailed Product Description

Modern molecular testing increasingly requires speed, portability, and high sensitivity outside traditional central laboratories. The Tianlong Gentier Mini Portable Real-Time PCR System addresses these critical demands by combining laboratory-grade optics with a rugged, ultra-compact physical design. Manufactured to solve spatial constraints and sample degradation issues caused by long transport times, this 16 Wells qPCR Machine allows researchers and technicians to bring high-precision quantitative amplification directly to the sampling location.

Supplied globally by Beijing Jiachuang Jiuhe Global Trade Co., Ltd, the Tianlong Gentier Mini Portable Real-Time PCR System integrates innovative fluorescence detection technology with solid-state thermal cycling components. Whether deployed in remote disease control units, veterinary clinics, or food processing plants, this Mobile Lab qPCR Device operates seamlessly across diverse environments. Its resilient physical structure eliminates optical misalignment during transport, guaranteeing that the On-Site PCR Analyzer maintains pinpoint accuracy without complex setup procedures.

Key Features

• Ultra-Lightweight & Compact Design: Weighing just 3.2 kg with a footprint taking up less than half a standard A4 sheet of paper, the Tianlong Gentier Mini Portable Real-Time PCR System maximizes bench space and field mobility.

• Calibration-Free Optical System: The specialized optical assembly of this Portable Quantitative PCR device requires zero fluorescence calibration after movement, allowing true "pick-up-and-go" operation.

• Rapid Fluorescence Scanning: Achieves complete signal detection across all 16 sample wells in just 1 second, significantly cutting down overall processing time.

• Triple-Control Functionality: Offers three versatile operational modes: an onboard 7-inch color touchscreen, a connected PC software platform, or remote tablet control via wireless networks.

• Comprehensive Data Analysis: Equipped with robust analytical tools for qualitative analysis, absolute quantification, relative quantification, single nucleotide polymorphism (SNP) analysis, and high-resolution melting curve evaluation.

• Flexible Connectivity: Supports integrated Wi-Fi, high-speed USB interfaces, and dedicated Ethernet ports for immediate data streaming to Laboratory Information Management Systems (LIMS).

Technical Advantages & Expertise

The engineering excellence behind the Tianlong Gentier Mini Portable Real-Time PCR System relies on modern thermoelectric cooling (Peltier) technology and high-luminance LED excitation sources. By offering a heating ramp rate of up to 5.0°C/s and a cooling rate of 4.0°C/s, this 16 Wells qPCR Machine dramatically compresses reaction cycles, delivering results in a fraction of the time required by traditional benchtop units.

Precision temperature control is vital for sensitive assays like low-copy pathogen detection or single base mutation scanning. The Tianlong Gentier Mini Portable Real-Time PCR System maintains a tight thermal accuracy of ≤0.1°C, minimizing sample-to-sample variation across all 16 wells. Additionally, the optimized optical path eliminates cross-talk between fluorescence channels (FAM, SYBR Green I, HEX, VIC), ensuring sharp signal-to-noise ratios. Beijing Jiachuang Jiuhe Global Trade Co., Ltd recommends this Mobile Lab qPCR Device for protocols requiring precise thermal manipulation, including Touchdown PCR and Long PCR programs.

Versatile Applications

1. Animal Disease Prevention & Control: Ideal for real-time viral and bacterial detection in farms, livestock stations, and veterinary clinics using this rapid On-Site PCR Analyzer.

2. Food Safety Inspection: Empowers field officers to detect foodborne pathogens, genetically modified organisms (GMOs), and meat adulteration on-site.

3. Mobile & Field Laboratories: Perfect for disaster response teams, customs inspection points, and environmental monitoring vehicles that rely on a Portable Quantitative PCR setup.

4. Academic & Industrial Research: Serves as an affordable, high-performance 16 Wells qPCR Machine for individual research groups needing dedicated, fast-turnaround target amplification.

Commercial Value & ROI

Investing in the Tianlong Gentier Mini Portable Real-Time PCR System through Beijing Jiachuang Jiuhe Global Trade Co., Ltd delivers immediate economic and operational benefits. By moving testing directly to the field, organizations reduce sample shipping costs, avoid sample degradation risks, and shorten turnaround times from days to under an hour.

The zero-calibration design reduces recurring maintenance and technician call-out expenses. Furthermore, the compatibility of this Portable Real-Time PCR System with standard 0.2 mL tubes and 8-strip consumables avoids lock-in to expensive proprietary plasticware, optimizing long-term operating expenditures for testing facilities worldwide.

Frequently Asked Questions (FAQ)

Q1: Does the Tianlong Gentier Mini Portable Real-Time PCR System require optical calibration after transport?

A1: No, the advanced structural design of the Tianlong Gentier Mini Portable Real-Time PCR System eliminates the need for fluorescence calibration after moving, making it a reliable Mobile Lab qPCR Device for immediate field deployment.

Q2: Can this 16 Wells qPCR Machine run without being connected to a computer?

A2: Yes, the Tianlong Gentier Mini Portable Real-Time PCR System features an integrated 7-inch color touchscreen that allows users to set up protocols, execute runs, and analyze data independently.

Q3: What happens if there is a sudden power outage during an experiment?

A3: The Tianlong Gentier Mini Portable Real-Time PCR System features built-in power-failure protection, automatically resuming the experiment from the exact point of interruption once power is restored.

Q4: How does Beijing Jiachuang Jiuhe Global Trade Co., Ltd support international B2B buyers?

A4: Beijing Jiachuang Jiuhe Global Trade Co., Ltd provides comprehensive B2B support, including global logistics coordination, technical documentation, operational guidance, and long-term customer service for the Tianlong Gentier Mini Portable Real-Time PCR System.
