Tech & Specs: 12 independent channels with 8-inch industrial screen and embedded Linux system.
Performance: High-throughput testing up to 120 tests/hour; reading time under 10s.
Scenarios: Emergency, Cardiology, Outpatient labs for cardiac, hormone, and renal panels.
Product Introduction Copy (Marketing Copy)
AFS2000A: Unlocking the New Era of High-Throughput Point-of-Care Testing (POCT)
AFS2000A is a multi-channel automatic dry immunofluorescence analyzer specifically designed for clinical departments and medium-to-large laboratories. It breaks through the throughput limitations of traditional POCT devices, combining "speed" and "accuracy" perfectly. It is an ideal choice for emergency, cardiology, and outpatient testing.
Why choose AFS2000A?
Ultra-fast turnaround, no more queuing. With 12 independent incubation channels, the testing speed reaches up to 120 tests per hour. A single reading takes less than 10 seconds, significantly shortening the clinical decision-making time (TAT).
All-inclusive compatibility, one machine for multiple uses. Supports various samples such as whole blood, serum, plasma, and urine, and covers 63 or more testing items including cardiovascular, inflammatory indicators, renal function, hormones, and gynecology and obstetrics.
Intelligent interconnection, data. Equipped with a Linux operating system， it runs more stably. Supports multiple connection methods including WiFi， 4G， and Ethernet， enabling real-time upload of test results to LIS/HIS systems.
User-friendly operation experience. Equipped with an 8-inch color industrial-grade touch screen， with an intuitive and easy-to-understand UI interface. Built-in thermal printer， supporting one-dimensional/QR code scanning， enabling automatic reading and entry of sample information.

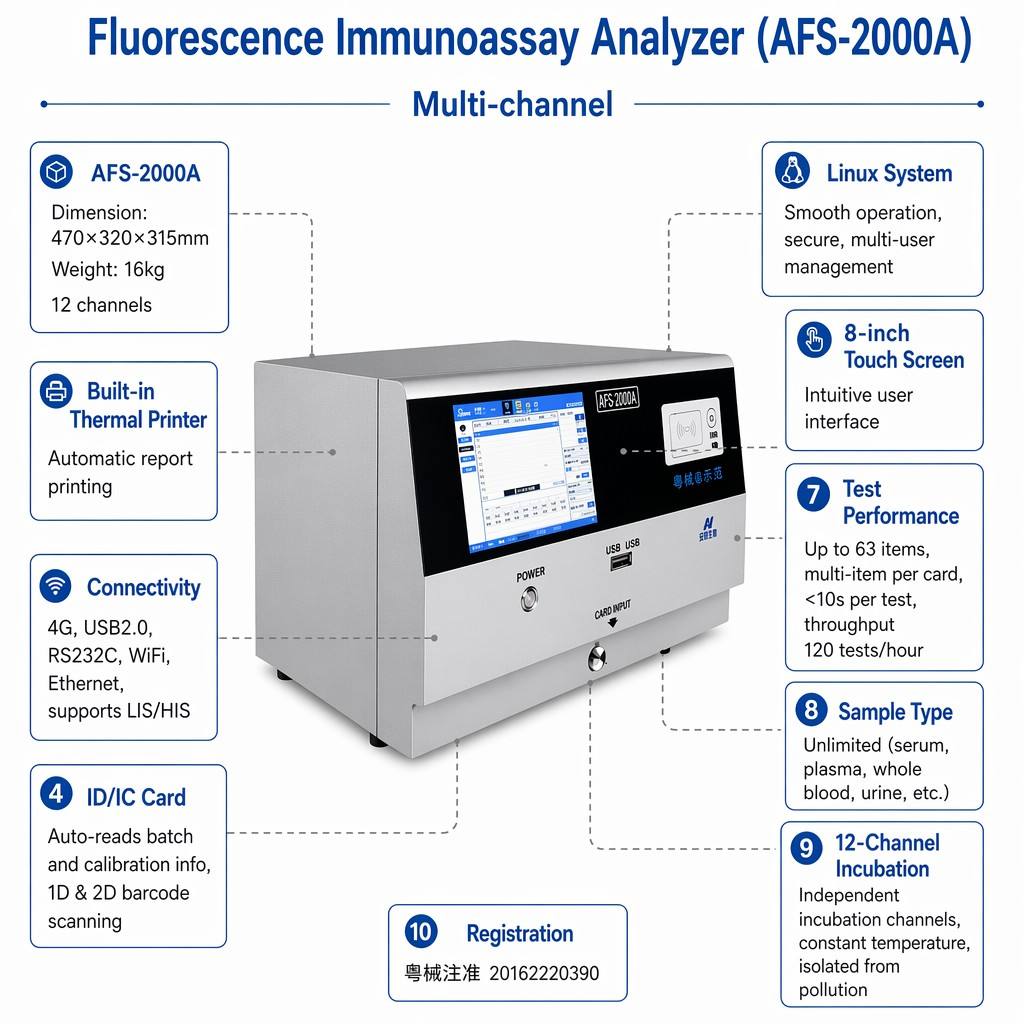

Product Specifications
| Parameter Category | Technical Specification |
|---|---|
| Model | AFS2000A |
| Detection Principle | Dry Fluorescence Immunoassay |
| Incubation Channels | 12 Independent Channels |
| Testing Speed | 120 Tests/Hour |
| Reading Time | < 10 seconds per test |
| Operating System | Linux Embedded System (Security & Smooth Operation) |
| Display Screen | 8-inch Color LCD Touch Screen |
| Sample Types | Serum, Plasma, Whole Blood, Urine, etc. |
| Assay Menu | Supports 63+ Assays (Supports Multiplex Testing on a Single Card) |
| Printing Function | Built-in Thermal Printer |
| Data Interfaces | USB 2.0, RS232C, Ethernet Port (Supports LIS/HIS) |
| Network Communication | 4G, WiFi, Wired Network (Multiple Connectivity Options) |
| Barcode Scanning | Supports 1D & 2D Barcode Scanning |
| Temperature Control Accuracy | Built-in Incubation System with Temperature Accuracy of ±1°C |
| Physical Specifications | Dimensions: 470×320×315mm / Weight: 16kg |
| Certification | Yue Mechun Zhun 20162220390 |
The Labsim AFS2000A Multi-channel Automatic Fluorescence Immunoassay Analyzer represents a major leap in point-of-care testing (POCT) for clinical laboratories, emergency departments, and healthcare facilities. Designed to deliver rapid and quantitative diagnostic results, the Labsim AFS2000A POCT Analyzer features a 12-channel independent incubation system that achieves a high throughput of 120 tests per hour. With a fast reading time under 10 seconds per test, this automatic fluorescence immunoassay analyzer significantly reduces turnaround times (TAT) for critical medical decisions. Engineered with a stable embedded Linux OS, 8-inch color touch screen, and comprehensive LIS/HIS connectivity, Beijing Jiachuang Jiuhe Global Trade Co., Ltd provides this advanced diagnostic solution to meet the modern demands of high-volume medical testing worldwide.
Modern healthcare environments require diagnostic solutions that combine high speed, clinical accuracy, and operational efficiency. Traditional single-channel point-of-care devices often suffer from severe throughput bottlenecks during peak hospital hours. The Labsim AFS2000A Multi-channel Automatic Fluorescence Immunoassay Analyzer addresses this challenge directly. Engineered by diagnostic technology leaders and distributed globally by Beijing Jiachuang Jiuhe Global Trade Co., Ltd, the Labsim AFS2000A POCT Analyzer serves as a high-capacity multi-channel dry immunoassay system capable of processing up to 120 tests per hour without compromising diagnostic accuracy.
Utilizing advanced dry immunofluorescence technology, the Labsim AFS2000A POCT Analyzer measures fluorescence intensity emitted by target biomarkers under specific excitation wavelengths. This optical detection method guarantees superior signal-to-noise ratios, enhanced sensitivity, and broad dynamic detection ranges across various biological matrix types, including whole blood, serum, plasma, and urine.
12-Channel Independent Incubation: The Labsim AFS2000A POCT Analyzer contains 12 separate incubation slots. Each channel functions independently, preventing cross-contamination and allowing continuous sample loading during operation.
120 Tests/Hour Throughput: Designed for high-volume settings, the system accelerates clinical workflows by completing individual card scans in less than 10 seconds.
Extensive Diagnostic Menu: Supports over 63 biological markers across cardiac health, inflammatory markers, renal function, hormone levels, gynecology, obstetrics, and infectious diseases.
Multiplex Testing Capability: The Labsim fluorescence immunoassay reader supports multi-analyte detection on a single test cartridge, maximizing diagnostic output per sample.
Smart Data Integration: Runs on a highly secure embedded Linux operating system with built-in support for 4G, Wi-Fi, and Ethernet connectivity for real-time LIS/HIS integration.
Fluorescence immunoassay reactions depend heavily on precise thermal conditions. The Labsim AFS2000A POCT Analyzer features an integrated precision heating mechanism that maintains incubation temperatures within a tight control margin of ±1°C. This accurate environmental control ensures consistent antigen-antibody binding kinetics, minimizing batch-to-batch coefficient of variation (CV) and guaranteeing reproducible quantitative measurements.
The internal optical module of this high-throughput fluorescence analyzer uses low-noise photodetectors coupled with excitation filters. This configuration filters background auto-fluorescence while amplifying specific emission signals. Combined with automatic 1D and 2D barcode scanning for sample and reagent identification, human error is eliminated from the diagnostic workflow.
| Parameter Category | Technical Specification |
| Model | Labsim AFS2000A |
| Product Category | Automatic Fluorescence Immunoassay Analyzer |
| Detection Principle | Dry Fluorescence Immunoassay |
| Incubation Channels | 12 Independent Heating Slots |
| Testing Throughput | 120 Tests / Hour |
| Reading Time | < 10 seconds / test |
| Operating System | Embedded Linux OS |
| Display Interface | 8-inch Color Industrial Touch Screen |
| Sample Matrix Types | Serum, Plasma, Whole Blood, Urine |
| Assay Capacity | 63+ Testing Parameters (Multiplex Supported) |
| Internal Printer | Built-in High-Speed Thermal Printer |
| Data Interfaces | USB 2.0, RS232C, Ethernet Port |
| Wireless Connectivity | Integrated 4G & Wi-Fi Modules |
| Barcode Recognition | Integrated 1D and 2D Barcode Scanner |
| Temperature Control | Automatic Incubation (Accuracy ±1°C) |
| Dimensions & Weight | 470 mm × 320 mm × 315 mm; 16 kg |
| Regulatory Certification | Yue Mechun Zhun 20162220390 |
The versatile design of the Labsim AFS2000A POCT Analyzer supplied by Beijing Jiachuang Jiuhe Global Trade Co., Ltd makes it suitable across diverse medical environments:
Emergency & Chest Pain Centers: Rapid quantification of cTnI, NT-proBNP, CK-MB, and Myo allows immediate risk stratification for acute coronary syndrome (ACS) patients.
Intensive Care Units (ICU): Fast monitoring of inflammatory biomarkers such as PCT, CRP, and SAA supports early detection and management of sepsis.
Outpatient & Central Laboratories: Acts as an efficient primary analyzer or reliable backup system to process routine hormone, renal, and maternal health panels during peak operational periods.
For medical distributors, hospital procurement managers, and laboratory directors, investing in the Labsim AFS2000A POCT Analyzer through Beijing Jiachuang Jiuhe Global Trade Co., Ltd delivers strategic economic advantages:
Maximized Operational ROI: Combining multi-channel incubation with high processing speeds allows a single multi-channel dry immunoassay system to replace multiple benchtop units, lowering capital expenditure and maintenance costs.
Minimized Consumable Waste: Dry reagent strip technology eliminates the liquid waste lines, washing buffers, and refrigeration infrastructure required by liquid chemiluminescence systems.
Streamlined Workflow Efficiency: Automated barcode reading and bi-directional LIS connectivity reduce manual data entry, allowing laboratory personnel to focus on higher-value tasks.
Q1: What sample types are compatible with the Labsim AFS2000A POCT Analyzer?
A: The Labsim AFS2000A POCT Analyzer handles multiple sample matrices, including whole blood, serum, plasma, and urine, without requiring complex sample pre-treatment steps.
Q2: How does Beijing Jiachuang Jiuhe Global Trade Co., Ltd ensure data integration with hospital systems?
A: Beijing Jiachuang Jiuhe Global Trade Co., Ltd provides instruments equipped with standard Ethernet, Wi-Fi, and 4G connectivity running on an embedded Linux system, ensuring smooth bi-directional communication with existing LIS and HIS networks.
Q3: Can the Labsim AFS2000A POCT Analyzer perform multiplex testing?
A: Yes, the Labsim fluorescence immunoassay reader supports multiplex test cards, enabling simultaneous detection of multiple biomarkers from a single sample volume.
Q4: What is the maintenance requirement for this automatic fluorescence immunoassay analyzer?
A: Because the Labsim AFS2000A POCT Analyzer uses solid-state dry immunofluorescence technology, it contains no liquid tubing or fluidic pumps, reducing routine maintenance demands compared to wet chemistry platforms.
